Piston Filler TruPiston 2SH | Piston & Valve System

Request a Quote

TUBE STRUCTURE & CHASSIS | PISTON & VALVE SYSTEM

ELECTRIC PANEL TOUCH| TANK

_______________________________________________

PISTONS

0.875 Inches Piston 1.500 Inches Piston

2.000 Inches Piston 3.000 Inches Piston

4.000 Inches Piston 5.250 Inches Piston

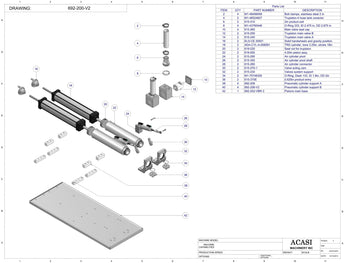

Item	Part No.	Part Name	Price
2	M1-48499099	Bolt clamps, stainless steel 2 in
4	M1-48524607	Trupiston-4 hose tank conector
6	615-310	2in product exit
8	M1-43760446	O-Ring 333, ID 2.475 in, OD 2.85 in
10	615-260	Main valve seal cap
12	615-250-V2	Trupiston main valve B
14	615-240	Trupiston main valve A
16	ELS-CE-30501	Solid handwheels and gravity position

Item	Part No.	Part Name	Price
18	ADA-CYL-A-008591	TRD cylinder, bore 3.25in, stroke 18in
20	619-220	Seal rod for trupiston
22	619-000	4.00in piston assy
24	615-290	Air cylinder pivot
26	615-300	Air cylinder pivor shaft
28	615-280	Air cylinder connector
30	615-270-1	Valve acting cam
32	615-230	Valves system support
34	M1-75748350	O-Ring, Dash 133, ID 1.8in, OD 2in

Item	Part No.	Part Name	Price
36	615-370E	0.625in product entry
38	692-008	Pneumatic cylinder support A
40	692-206-V2	Pneumatic cylinder support B
42	692-202-VBR-V3	Pistons main base
