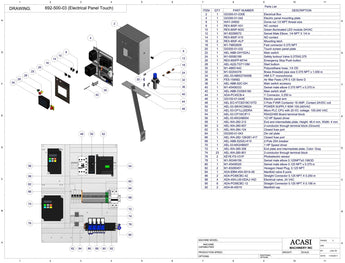

Piston Filler TruPiston 2SH | Electric Panel Touch




Item Part No. Part Name Price
2 GI3300-01-030E Electrical Box
4 GI3300-01-042

Electric panel mounting plate

6 WAY-24602 Dome nut 1/2 NPT thread size
8 REX-800F-X01 NC contact
10 REX-800F-N3G Green illuminated LED module 24VAC
12 M1-82288572 Swivel Male Elbow, 1/4 NPT X 1/4 in
14 REX-800F-X10 NO contact
16 REX-800F-ALP Mounting latch
Item Part No. Part Name Price
18 M1-79802609 Fast connector 0.375 NPT
20 GI3300-01-032

Touch screen panel plate

22 AEL-ABB-OHYS2AJ Main switch
24 M1-00092189 Safety lockout Valve 0,375X0,375
26 REX-800FP-MT44 Emergency Stop Push button
28 AEL-A22LTGT110M Start buttom
30 M1-48651442 Polyurethane hose, 1/4 OD
32 M1-02204378 Brass threaded pipe size 0.375 NPT x 1.000 in
Item Part No. Part Name Price
34 AEL-53-NB5QTW00B HMI 5.7" monochrome
36 FES-159582

Air filter Festo LFR 0.125 Serie D

38 AEL-ABB-S2C-DH Main switch accesory
40 M1-45408333 Swivel male elbow 0.375 NPT x 0.375 in
42 AEL-ABB-OXS6X180 Main switch shaft
44 ADA-PC45CB-4 Y Connector, 0.250 in
46 GI3100-01-044E    Electric panel arm
48 AEL-EO-XTCE018C10TD 3 Pole FVNR Contactor 18 AMP, Contact 24VDC coil
50 AEL-53-S8VKC06024 POWER SUPPLY 60W 100-240VAC
Item Part No. Part Name Price
52 AEL-53-CP1LL20DRA Micro PLC CPU with 20 I/O, voltage: 100-240 VAC
54 AEL-53-CP1WCIF11

RS422/485 Board terminal block

56 AEL-53-MX2AB004 1/2 HP Speed driver
58 AEL-WA-282-312 End and intermediate plate, Height: 46.4 mm, Width: 4 mm
60 AEL-WA-280-907 2-conductor through terminal block (Ground)
62 AEL-WA-284-124 Closed fuse port
64 GI3300-01-043 Din rail plate
66 AEL-WA-282-128/281-417 Closed fuse port
Item Part No. Part Name Price
68 AEL-ABB-S202U-K15 2-Pole 20A breaker
70 AEL-53-MX2AB007

1 HP Speed driver

72 AEL-WA-280-308 End plate and intermediate plate, Color: Gray
74 AEL-WA-280-901 2-conductor through terminal block
76 KEYE-FS-V31P Photoelectric sensor
78 ADA-CPBR250-1/8 Straight Male Connector, 1/8" NPT, OD: 1/4"
80 M1-45408325 Swivel male elbow 0.125 NPT x 0.375 in
82 M1-83295451 Hexagon Head Plug, 0,125 NPT
Item Part No. Part Name Price
84 ADA-EBM-45A-001A-06 Manifold valve 6 ports
86 ADA-PC68CBC-42

Straight Connector 0.125 NPT X 0.250 in

88 ADA-45A-L00-DDAJ-1KD Electrical valve, 24 VAC
90 ADA-CPLS250-1/8 Swivel male elbow 0.125NPT x 0.25in OD
92 ADA-M-45010 Manifold cap
