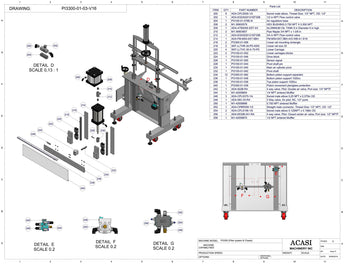

Piston Bottle Filler PI3300 | Filler System & Chassis (PI3300-01-03-V16)

Request a Quote

FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH

ELECTRIC PANEL STANDARD | TANKS | ACCESORIES | PISTONS

___________________________________________________

PI3300-01-01-V16 | PI3300-01-03-V16

Item	Part No.	Part Name	Price
200	ADA-CPLS500-1/2	Swivel male elbow, Thread Size: 1/2" NPT, OD: 1/2"
202	ADA-EG03020121EF30B	1/2 in NPT Flow control valve
204	PI3100-01-076E-N	Air regulators base
206	M1-36900579	Hex Bushing 0.750 NPT x 0.500 NPT
208	ADA-AT800X6-SST-XX	Aluminum oil tank 8 in Diameter 6 in high
210	M1-36903607	Pipe Nipple 3/4 NPT x 1-3/8 in
212	ADA-EG03020121EF35B	3/4 in NPT Flow control valve
214	ADA-FM-MS4-6X7.5BH	FM-MS4-6X7.5BH-A/O-WB-A1 5/16

Item	Part No.	Part Name	Price
216	PI3300-01-056	Linear rail mounting rectangle
218	SKF-LLTHR-30-P5-4000	Linear rail size 30
220	SKF-LLTHC-30-A-T0-P5	Linear Carriage
222	PI3100-01-052	Linear carriages blocks
224	PI3100-01-046	Drive block
226	PI3100-01-050	Sensor signal
228	PI3100-01-044	Pivot shaft pin
230	PI3100-01-040	Main air cylinder pivot

Item	Part No.	Part Name	Price
232	PI3100-01-042	Pivot shaft
234	PI3300-01-082	Bottom piston support separator
236	PI3100-01-048	Bottom piston support 1020cc
238	PI3100-01-036	Top piston support 1020CC
240	PI3300-01-038	Piston movement plexiglass protection
242	ADA-922B-RA	4 way valve, Pilot: Double air valve, Port size: 1/4" NPTF
244	M1-42008854	1/4 NPT sintered Muffler
246	ADA-CPLS375-1/4	Swivel male elbow 0,25 NPT x 0,375in OD

Item	Part No.	Part Name	Price
248	ADA-56C-53-RA	3 Way valve, Air pilot, NC, 1/2" ports
250	M1-42008888	0.750 NPT sintered Muffler
252	ADA-CPBR500-1/2	Straight male connector, Thread Size: 1/2" NPT, OD: 1/2"
254	ADA-CPLS156-1/8	Swivel male elbow 0.125NPT x 0.156in OD
256	ADA-6532B-241-RA	4 way valve, Pilot: Closed center air valve, Port size: 1/2" NPTF
258	M1-42008870	1/2 NPT sintered Muffler
