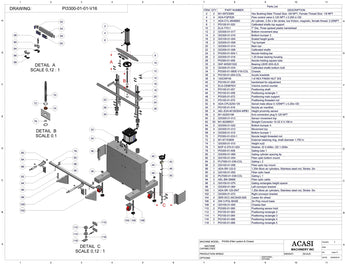

Piston Bottle Filler PI3300 | Filler System & Chassis (PI3300-01-01-V16)
FILLER SYSTEM & CHASSIS | ELECTRIC PANEL TOUCH
ELECTRIC PANEL STANDARD | TANKS | ACCESORIES | PISTONS
___________________________________________________
PI3300-01-01-V16 | PI3300-01-03-V16
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | M1-09723560 |
Hex Bushing Male Thread Size: 3/8 NPT, FemaleThread Size: 1/8 NPT |
 |
| 4 | ADA-FQPS2K |
Flow control valve 0.125 NPT x 0.250 in OD............. |
|
| 6 | ADA-CYL-8546683 | Air cylinder, 2.5in x 8in stroke, low friction, magnetic, female thread, 0.25NPT | |
| 8 | PI3100-01-020 | Calibrated shafts top support | |
| 10 | ELS-77511 | 7" Dia, Three spoked plastic handwheel | |
| 12 | GI3300-01-017 | Bottom movement stop | |
| 14 | GI3300-01-019 | Bottom bumper 3 | |
| 16 | GI3100-01-004 | Scaled height guide | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 18 | GI3300-01-008 |
Top bumper |
|
| 20 | GI3300-01-014 |
Main bar |
|
| 22 | GI3300-01-006 | Calibrated shafts | |
| 24 | PI3300-01-004-1 | Nozzle holding bar | |
| 26 | GI3300-01-016 | 1.25 linear bearing housing | |
| 28 | PI3300-01-006 | Nozzle holding square tube | |
| 30 | SKF-M/5201522 | Bearing LBXR 20G-2LS | |
| 32 | GI3300-01-034 | Calibrated shafts bottom hold | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 34 |
PI3300-01-080E-V16-COL |
Chassis |
|
| 36 |
PI3100-01-054-COL |
Acrylic brackets |
|
| 38 |
100CNFHS |
1-8 Hex Finish Nut S/S | |
| 40 |
ELS-978621 |
Handwheel for adjustment | |
| 42 | ELS-CE983631 | Volume control counter | |
| 44 | PI3100-01-057 | Positioning shaft | |
| 46 | PI3100-01-058 |
Positioning rectangle 1 |
|
| 48 | PI3300-01-072 | Positioning main support | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 50 | PI3100-01-070 | Positioning threaded rod | |
| 52 | ADA-CPLS250-1/8 |
Swivel male elbow 0.125NPT x 0.25in OD |
|
| 54 | PI3100-01-016 | Nozzle air manifold | |
| 56 | AEL-E2A-M12KS04-WPB1 | Height proximity sensor | |
| 58 | M1-02203198 | End connection plug 0.125 NPT | |
| 60 | GI3300-01-013 | Sensor movement top | |
| 62 | M1-82288531 | Straight Connector 10-32 X 0.156 in | |
| 64 | GI3300-01-022 | Bottom bumper 4 | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 66 | GI3300-01-012 |
Movement top |
|
| 68 | GI3300-01-015 |
Bottom bumper 1 |
|
| 70 | PI3300-01-033-1 |
Nozzle height threaded rod |
|
| 72 | M1-67153809 |
External retaining ring, shaft diameter 1.750 in |
|
| 74 | GI3300-01-010 | Height nut 2 | |
| 76 | NOF-0.375-01-023 | Washer, ID 0.406in, OD 1.250in | |
| 78 |
PI3300-01-008 |
Gating tube 1 | |
| 80 |
GI3300-01-068 |
Gating cylinder spacing tip | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 82 |
GI3100-01-054 |
Fiber optic bottom mount |
|
| 84 | PU7000-01-036-COL |
Gating L 2 |
|
| 86 | GI3100-01-056 | Fiber optic top mount | |
| 88 | ADA-SR-122-D | 1.25in Bore air cylinders, Stainless steel rod, Stroke: 2in | |
| 90 | GI3100-01-055 | Fiber optic head | |
| 92 | PU7000-01-038-COL | Gating L 1 | |
| 94 | AEL-BN-39996 | Fiber optic cable | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 96 | GI3100-01-070 | Gating rectangles height spacer | |
| 98 | GI3100-01-064 | Left conveyor bracket | |
| 100 | ADA-SR-125-DNT | 1.25in Bore air cylinders, Stainless steel rod, Stroke: 5in | |
| 102 | GI3100-01-072 |
Right conveyor bracket |
|
| 104 | SER-SCC-30CS420-929 | Caster 4in wheel | |
| 106 | SW-3-POL-BASE | 3in Poly mount base | |
| 108 | GI3100-01-090 |
Chassis feet |
|
| 110 | PI3300-01-060 |
Positioning sensor hold |
|
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 112 | PI3100-01-062 | Positioning rectangle 2 | |
| 114 | PI3100-01-064 | Positioning rectangle 3 | |
| 116 | PI3100-01-066 | Positioning rectangle 4 | |
| 118 | PI3100-01-068 | Positioning rectangle 5 | |
