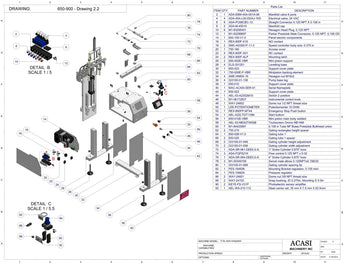

Miniature Piston Filler- Model MiniPiston-4 | Filler System & Chassis (650-900-Drawing 2.2)
$ 0.00 USD
/
FILLER SYSTEM & CHASSIS | ELECTRIC PANEL
___________________________________________________
650-900 - Drawing 1.2 | 650-900 - Drawing 2.2
| Item | Part No. | Part name | Price |
| 2 | ADA-EBM-45A-001A-06 | Manifold valve 6 ports |  |
| 4 | ADA-45A-L00-DDAJ-1KD | Electrical valve, 24 VAC | |
| 6 | ADA-CPLS250-1/8 | Swivel male elbow 0.125NPT x 0.25in OD | |
| 8 | ADA-M-45010 | Manifold cap | |
| 10 | M1-83295451 | Hexagon Head Plug, 0,125 NPT | |
| 12 | M1-82288697 | Prestolok Male Connector, 0.125 NPT, 0.156 OD |
|
| 14 | 650-100-V1.0 | Panel electric components | |
| 16 | REX-800F-X10 | NO contact | |
| 18 | SMC-AS3001F-11-3 | Speed controller body size: 0.375 in | |
| 20 | 750-160 | Access cover | |
| Item | Part No. | Part name | Price |
| 22 | REX-800F-X01 | NC contact | |
| 24 | REX-800F-ALP | Mounting latch | |
| 26 | 650-002E-VBR | Mini piston support | |
| 28 | ELS-301251 | Levelling base | |
| 30 | 650-023 | Support cover plate | |
| 32 | 750-500E-F-VBR | Minipiston backing element |
|
| 34 | AME-HNMX-16 | Hexagon nut M16x2 | |
| 36 | GI3100-01-138 | Pump base leg | |
| 38 | 650-010 | Support cover plate | |
| 40 | MAC-ACASI-SER-01 | Serial Nameplate | |
| Item | Part No. | Part name | Price |
| 42 | 650-022 | Support cover plate | |
| 44 | AEL-53-A22S2M10 | Switch 2 position | |
| 46 | M1-06172837 | Instrumental control knob | |
| 48 | WAY-24602 | Dome nut 1/2 NPT thread size | |
| 50 | LEE-POTENTIOMETER | Potentiomenter 10 OHM | |
| 52 | REX-800FP-MT44 | Emergency Stop Push button |
|
| 54 | AEL-A22LTGT110M | Start buttom | |
| 56 | 650-012E-VBR | Mini piston main body welded | |
| 58 | AEL-53-NB3QTW00B | Touhscreen Omron NB HMI | |
| 60 | M1-84425891 | 0.156 in Tube NP Brass Prestolok Bulkhead union | |
| Item | Part No. | Part name | Price |
| 62 | 750-210 | Gating rectangles height spacer | |
| 64 | 650-026-V1.0 | Gating tube 1 | |
| 66 | 650-025 | Gating tube 1 spacer | |
| 68 | GI3100-01-048 | Gating cylinder height adjustment | |
| 70 | GI3100-01-058 | Gating cylinder width adjustment | |
| 72 | ADA-SR-061-DEE0.5-G | 1" Sroke Cylinder 0.875" bore |
|
| 74 | ADA-FQPS21K | Flow control 0.125 NPT x 5-32 | |
| 76 | ADA-SR-064-DEE0.5-G | 4" Sroke Cylinder 0.875" bore | |
| 78 | ADA-CPBR250-1/8 | Straight Male Connector, 1/8" NPT, OD: 1/4" | |
| 80 | GI3100-01-068 | Gating cylinder spacing tip | |
| 82 | FES-164936 | Mounting Bracket regulador, 0.125 mini | |
| 84 | FES-159624 | Regulator, 1/8 mini | |
| 86 | WAY-24601 | Dome nut 3/8 NPT thread size | |
| 88 | WAY-24102 | Snap bushing, ID 0,375in, Mounting D 0.5in | |
| 90 | KEYE-FS-V31P | Photoelectric sensor amplifier | |
| 92 | AEL-WA-210-112 | Steel carrier rail, 35 mm X 7.5 mm X 63.5mm | |
