Miniature Piston Filler- Model MiniPiston- 4 | Filler System & Chassis (650-900-Drawing 1.2)


FILLER SYSTEM & CHASSIS | ELECTRIC PANEL

5GL TANK | PISTONS | NOZZLES

___________________________________________________

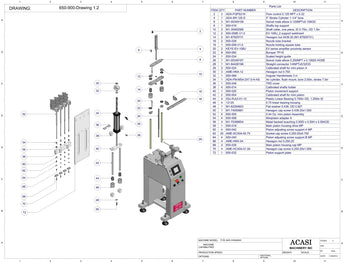

650-900 - Drawing 1.2 | 650-900 - Drawing 2.2

Item Part No. Part name Price
2 ADA-FQPS21K Flow control 0.125 NPT x 5-32
4 ADA-SR-125-D 5" Stroke Cylinder 1-1/4" bore
6 ADA-CPBR250-1/8 Straight Male Connector, 1/8" NPT, OD: 1/4"
8 650-016 Shafts top support
10 M1-35462589 Shaft collar, one piece, ID 0.75in, OD 1.5in
12 650-058E-V1.0 EV-108U support weldment
14 M1-87925731 Hexagon nut
Item Part No. Part name Price
16 650-028 Nozzle tube bracket
18 650-006-V1.0 Nozzle holding square tube
20 KEYE-EV-108U EV series amplifier proximity sensor
22 650-060 Bumper TP1S
24 650-034 Scaled height guide
26 M1-00349167 Swivel male elbow 0.250NPT x 0.15625 HOSE
28 M1-84426196 Straight connector 1/4NPTx5/32OD
Item Part No. Part name Price
29 650-024 Calibrated shaft for mini piston A
30 AME-HNX-12 Hexagon nut 0.750
32 650-066 Angular Handwheels 3 in
34 ADA-FM-MS4-2X7.5-H-AS Air cylinder, flush mount, bore 2.00in, stroke 7.5in
36 650-048 TRD cover
38 650-014 Calibrated shafts holder
40 650-020 Piston movement support
Item Part No. Part name Price
42 650-004 Calibrated shaft for mini piston
44 IGU-RJUI-01-12 Plastic Linear Bearing 0.750in OD, 1.250in ID
46 12120 0.75 linear bearing housing
48 M1-82294653 Flat washer 0.438, OD 0.927
50 M1-74050881 Hexagon cap screw 0.438-20x1.000
52 650-500 0.44 Oz. mini piston Assembly
54 650-008 Minipiston adapter A
Item Part No. Part name Price
56 M1-75368654 Metal backed busching 0.50ID x 0.50H x 0.594OD
58 650-018 Main piston housing drive MP
60 650-042 Piston adjusting screw support A MP
62 AME-SCX04-0.75 Socket cap screw 0.250-20x0.750
64 650-040 Piston adjusting screw support B MP
66 AME-HNX-04 Hexagon nut 0.250-20
68 650-038 Main piston housing cap MP
70 AME-HCX04-01.00 Hexagon cap screw 0.250-20x1.000
72  650-032 Piston support plate
