Inline Bottle Cap Tightener Model-TruCap | Electric Panel System


CHASSIS SYSTEM | MAIN HOLDER SYSTEM

ELECTRIC PANEL SYSTEM | BOTTLE BELTS SYSTEM

BELTS SYSTEM GEAR BOX | CAPPING DISC GEAR BOX

CAPPING DISC SYSTEM (MECHANICAL CLUTCHES)

CAPPING DISC SYSTEM (PNEUMATIC CLUTCHES)

___________________________________________________________

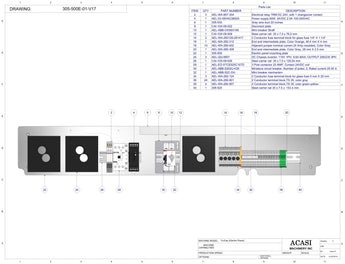

305-500E-01-V17 | 305-500E-2-V22

Item Part No. Part Name Price
2 AEL-WA-857-304 Electrical relay TRM DC 24V, with 1 changeover contact
4 AEL-53-S8VKC06024 Power supply 60W, 24VDC 2.5A 100-240VAC
6 305-530 Gray wire duct 20 inches
8 CAI-10X-09-022 Disconect plate
10 AEL-ABB-OXS6X180 Mini breaker shaft
12 CAI-10X-09-008 Steel carrier rail 35 x 7,5 x 76,2 mm
14 AEL-WA-282-128/281-417 Close fuse port
Item Part No. Part Name Price
16 AEL-WA-282-312 End and intermediate plate, Height: 46.4 mm, Width: 4 mm
18 AEL-WA-280-402 Adjacent jumper nominal current 24 A insulated, Width: 5 mm
20 AEL-WA-280-308 End plate and intermediate plate, Color: Gray
22 305-500 Electric panel mounting plate
24 AEL-QQ-9957
DC Chassis inverter, 115V 1PH, 9.6A Max: Output 208/230 3PH
26 CAI-10X-09-026 Steel carrier rail 35 x 7,5 x 129,54 mm
28 AEL-EO-XTCE025C10TD 3 Pole contactor 25 AMP, Contact 24VDC coil
30 AEL-ABB-S202U-K25 Miniature circuit breaker, Rated current 25.00 A
Item Part No. Part Name Price
32 AEL-ABB-S2C-DH Main switch accesory
34 AEL-WA-282-124 Closed fuse port
36 AEL-WA-280-901 2-conductor terminal block, TS 35, color gray
38 AEL-WA-280-907 2-conductor terminal block, TS 35, color green-yellow
40 305-520 Steel carrier rail 35 x 7,5 x 153.4 mm
