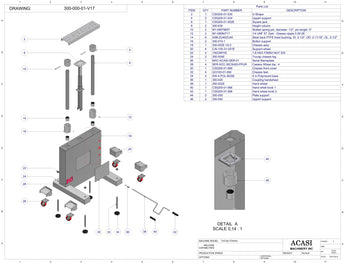

Inline Bottle Cap Tightener Model-TruCap | Chassis System

Request a Quote

CHASSIS SYSTEM | MAIN HOLDER SYSTEM

ELECTRIC PANEL SYSTEM | BOTTLE BELTS SYSTEM

BELTS SYSTEM GEAR BOX | CAPPING DISC GEAR BOX

CAPPING DISC SYSTEM (MECHANICAL CLUTCHES)

CAPPING DISC SYSTEM (PNEUMATIC CLUTCHES)

Item	Part No.	Part Name	Price
2	CS5200-01-030	U-Shape
4	CS5200-01-034	Uppert support
6	CS5200-01-052E	Square jack
8	300-030	Height colums
10	M1-09579657	Slotted spring pin, diameter: 1/2", pin lenght: 5"
12	M1-08060717	1/4 UNF ST Zerk - Grease nipple 0.25-28
14	ASB-ZU40ZU40	Steel back PRFE lined bushing, ID: 2-1/2", OD: 2-11/16", OL: 2-1/2"
16	300-010-1	Bottom support
18	300-002E V2.0	Chassis Assy

Item	Part No.	Part Name	Price
20	CAI-10X-01-051E	Support wheel
22	100CNFHS	1-8 HEX FINISH NUT S/S
24	300-004E	Trucap chassis leg
26	MAC-ACASI-SER-01	Serial Nameplate
28	SER-SCC-30CS420-PPUR	Casters Wheel dia.: 4
30	CS5200-01-069	Chassis front cover
32	GI3100-01-090	Chassis feet

Item	Part No.	Part Name	Price
34	SW-4-POL-BASE	4 in Polymount base 4"
36	300-020	Coupling handwheel
38	300-022E	Hand wheel
40	CS5200-01-066	Hand whell knob 1
42	CS5200-01-068	Hand wheel knob 2
44	300-050	Plate support
46	300-040	Uppert support
