Bottle Unscrambler Trusort-60 | Kicker
$ 0.00 USD
/
BOTTLE TURNING | STRUCTURE | TRANSMISION BOX
STEPPING ASSY | REAR GUIDE | BOWL | KICKER
SPACING BELTS | BELT SYSTEM | ELECTRIC PANEL

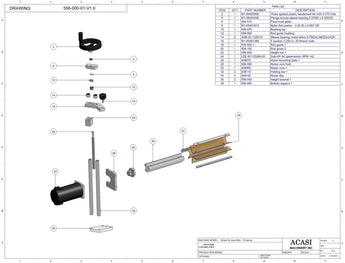

| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 |
M1-64829500 |
Three spoked plastic handwheel 4in with 0.375 hole |
 |
| 4 | M1-06454490 |
Flange bronze sleeve bearing 0.375ID x 0.500OD |
|
| 6 | 564-012 | Fixed bowl plate | |
| 8 | M1-00591388 | 5 spoked, 0.250 in, 20 thread male | |
| 10 | M1-05401815 | Nylon flat washer - 0.25 ID x 0.697 OD | |
| 12 | 564-028 | Bushing top | |
| 14 | 564-020 | Rod guide 2 | |
| 16 | ASB-ZU12ZU20 | Sleeve bearing, metal baked teflon (0.75ID x 1.25H) | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 18 |
556-070 |
Bushing top |
|
| 20 | 556-060 |
Rod guide bushing |
|
| 22 | 564-024 | Rod guide column | |
| 24 | 564-022 | Rod guide 1 | |
| 26 | 564-018 | Height rod 1 | |
| 28 | 564-010 | Height bracket 1 | |
| 30 | LEE-G175233.00 | Flange kit series 512 Long | |
| 32 | LEE-W5120089.00 | Single reduction gear box | |
| 34 | LEE-192018.00 | AC Metric motor, HP-KW: 1/4-0.18 | |
| 36 | 564-008 | Kicker core hold | |
| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 38 |
564-026 |
Bottom support 1 |
|
| 40 | 564-016 |
Motor mounting plate 1 |
|
| 42 | 564-002 | Kicker core 2 | |
| 44 | 564-006 | Kicker flap | |
| 46 | 564-004 | Holding bar 1 | |
