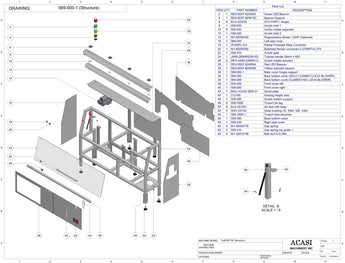

Bottle Unscrambler Model Trusort-60 | Structure


BOTTLE TURNING | STRUCTURE    | TRANSMISION BOX

STEPPING ASSY     REAR GUIDE   | BOWL |  KICKER

SPACING BELTS   | BELT SYSTEM  |  BELT SYSTEM V21

ELECTRIC PANEL

Item Part No. Part Name Price
2

REX-855T-B24DN3

Green LED beacon

4 REX-855T-BPM10C

Beacon support

6 ELS-422232 CFA PART1 hinges
8 559-030 Acrylic hold 1
10 559-540 Acrylic holder separator
12 559-020 Acrylic hold 2
14 M1-80059355 Regenerative blower 1/2HP (Optional)
16 569-240 Left side cover
Item Part No. Part Name Price
18

W169PL-6-4

Parker Prestolok Male Connector

20 M1-80258395

Bulkhead female connector 0.375NPTx0.375

22 559-270 Acrylic gate
24 JWW-28W600D91/EL Tubular handle 28mm x 600
26 REX-440N-Z2NRS1A Guard master actuator
28 REX-855T-B24DN4 Red LED Beacon
30 REX-855T-B24DN5 Yellow indicator beacon
32 569-050-1 Main cover hinges support
34 569-280 Back bottom cover (only with blower)
Item Part No. Part Name Price
36

569-260

Back bottom cover (without blower)

38 559-250 Front cover left
40 559-260 Front cover right
42 MAC-ACASI-SER-01 Serial plate
44 213160 Ionizing height view
46 559-280 Acrylic bottom support
48 559-700E Trusort 3in leg
50 ELS-301251 4in feet with base
Item Part No. Part Name Price
52

WAY-24104

Snap bushing, ID. 5/8in, MD. 3/4in

54 569-190E-1

Trusort tube structure

56 559-580 Back bottom cover
58 559-230 Right side cover
60 M1-00483776 Gas spring
62 559-210 Gas spring top guide 1
64 M1-32912198 Ball stud D-0.39in
