Straight Conveyors 10 feet

$ 3,728.00

Request a Quote

6 feet | 10 feet | 13 feet | 16 feet | 20 feet

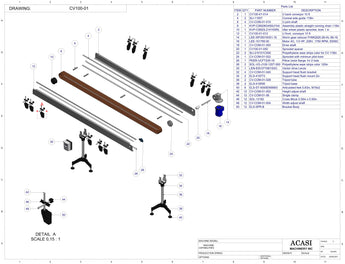

Item	Part No.	Part Name	Price
2	CV100-01-014	U back conveyor 10 ft
4	SLI-11957	Conical side guide 118 in
6	CV-COM-01-010	U joint shaft
8	KVP-C0820K0450LFAA	Assembly plastic straight running chain 118in
10	KVP-C0820L21H100RL	Idler wheel plastic sprocket, bore 1in
12	CV100-01-012	U front, conveyor 10 ft
14	LEE-WF20016301.16	Worm gear reducer FHMQ520-26-HL-56-16
16	LEE-101769.00	Motor AC, 1/3 HP, 208V, 1750 RPM, SS56C
18	CV-COM-01-050	Drive shaft

Item	Part No.	Part Name	Price
20	CV100-01-050	Sprocket spacer
22	SLI-210101C500	Polyethylene wear strips color for CV 118in
24	CV-COM-01-022	Sprocket with minimun pilot bore
26	PEER-UCFT205-16	Pillow block flange 1in 2 hole
28	SOL-VG-J100-125T-500	Polyethylene wear strips color 120in
30	LEN-ESV371N01SXC	Vector drive Lenze (only installed on independent conveyors)
32	CV-COM-01-040	Support head flush bracket
34	ELS-419773	Support head flush mount 2in

Item	Part No.	Part Name	Price
36	CV-COM-01-028	Tripod tube
38	ELS-419595	Tripod base
40	ELS-ST-0000EN569/0	Articulated feet 5,93in, M16x2
42	CV-COM-01-002	Height adjust shaft
44	CV-COM-01-08	Single clamp
46	SOL-13182	Cross Block 0.50in x 0.50in
48	CV-COM-01-004	Width adjust shaft
50	ELS-SPR.B	Bracket Body
