Semi-Automatic Pump Filler - Model PU1000 Videos

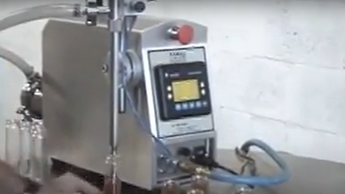

ACASI pump bottle filler model PU1000, semi-automatic filling machine

Construction features:

  • Fills from low to medium-viscosity liquids.
  • Pump in contained within a solid 316 stainless steel seamless vault than features a Tri-clover clamp fitting.
  • Pump rotates 360 degrees to accommodate any required hose configuration.
  • Pump disassembles very easily for cleaning and sterilization.
  • 316L stainless steel pump gear box.
  • Teflon pump gears.
  • Viton or EPDM pump elastomers.
  • Omrom pump drive and touch screen control system.
  • Optional 3 cubic foot stainless steel hopper for direct vertical feed to pump for high viscosity products.
  • Automation option available.

Electric and pneumatic requirements:

  • 110 Volts, 60Hz, 5 Amps.
  • 2 CFM @ 80 p.s.i.
