Rotary Pressure Overflow Filler RF48-36 Videos

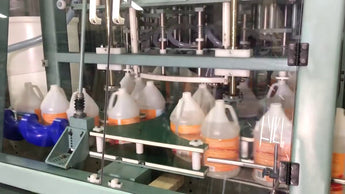

ACASI Rotary pressure–overflow filler model RF48-36, automatic 36 head Rotary Filler

Construction features:

  • Heavy duty frame built with 4 x 4 x 0.250 in 304 stainless steel square tubes.
  • 304 stainless steel cam with plastic bushings and cam followers.
  • Supply and return manifold made in 316L stainless steel.
  • Calibrated guide for fast height changeovers.
  • Leveling of machine by 1 inch 304 stainless steel threaded bar.
  • Includes drip pan made of stainless steel.

Control panel features:

  • Omron PLC for all machine logic functions, special modifications on programs available for special adaptations.
  • Frequency control drive for pump speed, acceleration and deceleration.
  • Front panel bottle filling time adjustment through Omron Timer.
  • Front panel conveyor speed control for machine sold with conveyor.
  • Front panel mounted bottle counter.
  • Front panel Start and Emergency STOP for easy access.
  • Front panel nozzle code for changing nozzle quantities.
  • Fiber optic sensors by Omron standard for container gating.
  • No bottle no fill PLC controlled.

Transmission features:

  • Gears located on top of the movement for better maintenance.
  • All bearings protected with seals to prevent corrosion.
  • Manual height adjustment with position indicator.

 Manifold features:

  • Top and bottom manifold independent.
  • Manufactured in 316L stainless steel.
  • Triple teflon loaded seals to prevent leaks.

 Main components feature:

  • 100 gallon per minute, 1 Hp, 3phase, 316 stainless steel centrifugal pump.
  • 100 gallon polyethylene satellite tank for feed, product return and product supply with level control.
  • Clear polycarbonate safety enclosure with safety switches.
  • No bottle no fill.

Container handling:

  • Infeed screw and starwheel assembly for each container.
  • 36 filling positions.
  • Tool-less changeover parts and adjustments.
  • Distance between centers 8.4in.

 Conveyor:

  • 16 feet total length conveyor, raised bed.
  • 304 stainless steel conveyor shaft drive.

 Control panel features:

  • Omron PLC for all machine logic functions, special modifications on programs available for special adaptations.
  • Frequency control drive for pump speed, acceleration and deceleration.
  • Front panel conveyor speed control for machine sold with conveyor.
  • Front panel mounted bottle counter.
  • Front panel Start and Emergency STOP for easy access.
  • Fiber optic sensors by Omron standard for backup sensor.

Electric and pneumatic requirements:

220 Volts, 50Hz or 60Hz, 20 Amps.
5 CFM @ 80 p.s.i.
