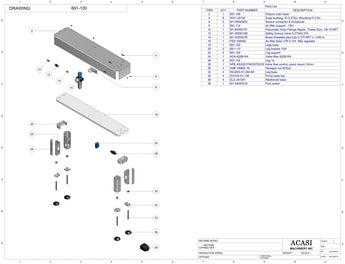

| Item | Part No. | Part Name | Price |
|---|---|---|---|
| 2 | 691-108 | Pistons main base |  |
| 4 | WAY-24102 | Snap bushing, ID 0.375in, Mounting D 0.5in | |
| 6 | M1-09540832 | Sensor connector & receptacle | |
| 8 | 691-114 |
Air filter support |
|
| 10 | M1-84930197 | Pneumatic Hose Fittings Nipple: Thread Size: 3/8-18 NPT | |
| 12 | M1-00092189 | Safety lockout Valve 0,375X0,375 | |
| 14 | M1-02204378 | Brass threaded pipe size 0.375 NPT x 1.000 in | |
| 16 | FES-159582 | Air filter festo LFR 0.375 filter regulator | |
| 18 | 691-102 | Legs base | |
| 20 | 691-110 | Leg bracket 1SH | |
| 22 | 691-106 | Leg support | |
| 24 | ADA-922B-RA | Valve Mac 922B-RA | |
| 26 | 691-104 | Leg 1a | |
| 28 | HPE-AS3201FN0307SX35 | Inline flow control, panel mount 12mm | |
| 30 | AME-HNMX-16 | Hexagon nut M16x2 | |
| 32 | RA3200-01-044-MI | Leg base | |
| 34 | GI3100-01-138 | Pump base leg | |
| 36 | ELS-301251 | Reinforced base | |
| 38 | M1-54097019 | Foot switch | |
