Acasi

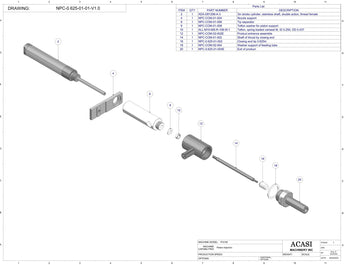

Closed Pneumatic Nozzles Assy NPC-0.625-01
$ 0.00 USD
/
Sizes availables:
0.375 in | 0.500 in | 0.625 in | 0.750 in | 1.000 in
| Item | Part No. | Part name | Price |
| 2 | ADA-D81298-A-3 | 3in stroke cylinder, stainless shaft, double action, thread female |  |
| 4 | NPC-COM-01-004 | Nozzle support | |
| 6 | NPC-COM-01-006 | Tip separator | |
| 8 | NPC-COM-01-008 | Teflon washer for piston support | |
| 10 | ALL-M10-MS-R-108-W-1 | Teflon, spring loaded variseal M, ID 0.250, OD 0.437 | |
| 12 | NPC-COM-02-002E | Product entrance assemble | |
| 14 | NPC-COM-01-002 | Shaft of thrust by closing end | |
| 16 | NPC-0.625-01-002 | Closing end tip 0.625in | |
| 18 | NPC-COM-02-004 | Washer support of feeding tube | |
| 20 | NPC-0.625-01-004E | Exit of product | |
Pickup available at 7085 NW 46th Street
Payment
