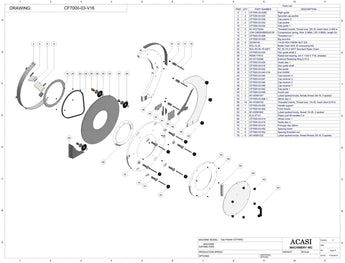

Vertical wheel cap feeder, model CF 7000, Assy CF7000-03-V16, by Acasi Machinery Inc.

Acasi

Cap Feeder Model CF7000 Parts CF7000-03-V16

Name: Cap Feeder Model CF7000 Parts CF7000-03-V16
Brand: Acasi
Availability: InStock

$ 0.00 USD

Product variants

CF7000-01-V16 | CF7000-03-V16

CF7000-01-V20 | CF7000-03-V22

__________________________________________________

Option:

Cap chute (13000)

Item	Part No.	Part Name
2	CF7000-03-028E	Right guide
4	CF7000-03-030	Sproket cap pusher
6	CF7000-03-036	Cap pusher 2
8	CF7000-03-032	Cap pusher
10	CF7000-03-034	Side guide 1
12	M1-67215244	Threaded inserts, thread size:3/8-16, insert diam: 0.469 in
14	JON-C850X068SSX2.00	Compression spring, wire: 0.068 in, OD:0.850in, lengthh 2 in
16	CF7000-03-008	Threaded rod 1

Item	Part No.	Part Name
18	CF7000-03-026	Big sprocket
20	25CNFHS	1/4-20 Hex finish nut s/s
22	ROL-CL35	Roller chain asa 35 connecting link
24	ROL-RC35-1R-50FT	RC 35-1R X 50FT Standard roller chain
26	CF7000-03-024	Disc guide shaft 2
28	PEER-77R12	Radial ball bearing, 3/4 x 1-5/8 x 7/16, shielded
30	M1-67153288	External retaning ring 0.75 in
32	CF7000-03-020	Guide disc 1

Item	Part No.	Part Name
34	CF7000-03-016	Disc guide shaft
36	CF7000-03-022	Disc guide
38	CF7000-03-040-V16	Exit UHMW
40	CF7000-03-044	Cap receiver 4
42	CF7000-03-047	Cap receiver 2
44	CF7000-03-045	Cap receiver 2
46	CF7000-03-046	Cap receiver 1
48	CF7000-03-042	Cap guide 1

Item	Part No.	Part Name
50	CF7000-03-048	Acrylic exit
52	M1-00591347	Lobed spoked knobs, female thread 3/8-16,5 spoked
54	CF7000-03-006-1	28mm disc 2
56	M1-91093732	Threaded inserts, Thread size: 1/4-20, insert diam: 5/6 in
58	CF7000-03-003	Handle support
60	CF7000-03-002	Front Acrylic
62	M1-00591842	Lobed spoked knobs, thread 1/4-20,3 spoked
64	ELS-37101	Plastic pull lift handles 5 in

Item	Part No.	Part Name
66	CF7000-03-014	Wheel cover 1
68	CF7000-03-018	Guide disc 2
70	CF7000-03-012	Principal disc 28mm
72	CF7000-03-050	Spacing insert
74	CF7000-03-052	Spacing threaded rod
76	M1-00591222	Lobed spoked knobs, threaded female 3/8-16,5 spoked
