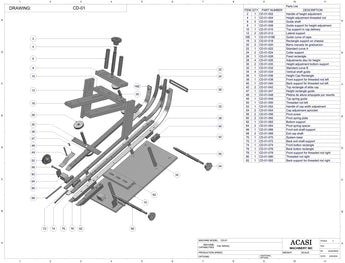

Cap Delivery Model CD-01

Request a Quote

Option:

Cap delivery (CD-01) | Cap delivery (CD-03) | Cap delivery (CD-21)

Manufactured Parts | Components

Item	Part No	Part Name	Price
2	CD-01-002	Handle of height adjustment
4	CD-01-004	Height adjustment threaded rod
6	CD-01-006	Guide shaft
8	CD-01-008	Guide support for height adjustment
10	CD-01-010	Top support in cap delivery
12	CD-01-012	Lateral support
16E	CD-01-016E	Guide curve of caps
18	CD-01-018	Rectangle support on chassis

Item	Part No.	Part Name	Price
20	CD-01-020	Height threaded rod
22	CD-01-022	Standard curve A
24	CD-01-024	Collar support
26	CD-01-028	Fixed rectangle
28	CD-01-026	Adjustments disc for height
30	CD-01-030	Height adjustment bottom support
32	CD-01-032	Standard curve B
34	CD-01-034	Vertical shaft guide
36	CD-01-036	Height Cap Rectangle

Item	Part No.	Part Name	Price
38	CD-01-038	Front support for threaded rod left
40	CD-01-040	Back support for threaded rod left
42	CD-01-042	Top rectangle of slide cap
44	CD-01-047	Height rectangle guide
46	CD-01-048	Height plate spring biased
48	CD-01-049	Height rectangle spring acting
50	CD-01-050	Threaded rod left
52	CD-01-052	Handle of cap width adjustment

Item	Part No.	Part Name	Price
54	CD-01-054	Cap adjustment sprocket
56	CD-01-056	Pivot screw
60	CD-01-060	Pivot spring plate
62	CD-01-062	Bottom support
64	CD-01-064	Pivot spring spacer
66	CD-01-066	Front exit shaft support
68	CD-01-068	Exit cap shaft
70	CD-01-070	System base

Item	Part No.	Part Name	Price
72	CD-01-072	Back exit shaft support
74	CD-01-074	Front botton rectangle
76	CD-01-076	Back botton rectangle
78	CD-01-078	Front support for threaded rod right
80	CD-01-080	Threaded rod right
82	CD-01-082	Back support for threaded rod right
