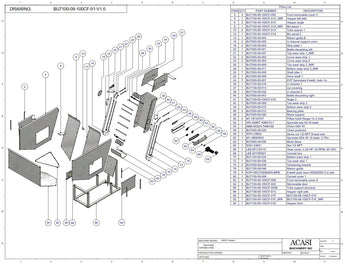

Bottle Unscrambler Trusort-48 / 60 / SO | Hopper 100 CF

Request a Quote

Hopper 15 CF | Hopper 25 CF | Hopper 35 CF | Hopper 100CF

Item	Part No.	Part Name	Price
2	BU7100-09-100CF-006	Front removable cover C
4	BU7100-09-100CF-01C_MIR	Hopper left side
6	BU7100-09-100CF-010	Hopper angle
8	BU7100-09-100CF-01A_MIR	Bin panel 1
10	BU7100-09-100CF-014	Tube spacer 1
12	BU7100-09-100CF-01A	Bin panel 2
14	BU7100-09-044	Return guide B
16	BU7000-09-045	U channel support union

Item	Part No.	Part Name	Price
18	BU7100-09-024	Strip plate 1
20	BU7000-09-041	Bottle discarding left
21	BU7100-09-037	Top wear strip 1_MIR
22	BU7000-09-002	Curve wear strip 1
24	BU7000-09-004	Curve wear strip 2
26	BU7000-09-009	Top wear strip 2_MIR
28	BU7000-09-011	Bottom wear strip 2_MIR
30	BU7000-09-040	Shaft idler 1
32	BU7000-09-006	Drive shaft 1
34	BU7000-09-007	KVP Sprockets 8 teeth, hole 1in

Item	Part No.	Part Name	Price
36	BU7100-09-016	U channel 1
37	BU7100-09-014	Lip covering
38	BU7100-09-032	U channel 2
40	BU7000-09-043	Bottle discarding right
41	BU7100-09-100CF-016	Angle 2
42	BU7000-09-008	Top wear strip 2
44	BU7000-09-010	Bottom wear strip 2
46	BU7000-09-012	Bearing plate
48	BU7000-09-026	Motor support
50	PEER-UCFT205-16	Pillow bolck flange 1in 2 hole

Item	Part No.	Part Name	Price
52	APL-MART 40BS16-1	Sprocket asa 40-16 teeth
54	AMA-KOCH-7440100	Chain ASA 40
56	BU7000-09-028	Chain protector
58	WAY-24602	Dome nut 1/2 NPT thread size
60	M1-36684942	Sprocket ASA 40 16 teeth, 0.75in
62	BU7000-09-030	Motor Base
64	WAY-24641	Nut 1/2 NPT
66	LEE-M1135110	Gear motor, 0.25 HP, 63 RPM, 90 VDC

Item	Part No.	Part Name	Price
68	LEE-M1760007	Conduit box
70	BU7100-09-034	Bottom wear strip 1
72	BU7100-09-036	Top wear strip 1
74	BU7000-09-038	Tensioning bracket
76	BU7100-09-046	Return guide
78	KVP-HDU72008AEN-MPB	8 teeth plain bore HDS62000 2 in belt
80	BU7100-09-048	Curved cover 1
82	BU7100-09-100CF-008	Front removable cover A

Item	Part No.	Part Name	Price
84	BU7100-09-100CF-002	Removable door
86	BU7100-09-100CF-004E	Tube support structure
88	BU7100-09-100CF-01C	Hopper right side
90	BU7100-09-100CF-01F	BU7100-09-100CF-01F
92	BU7100-09-100CF-01F_MIR	BU7100-09-100CF-01F_MIR
94	BU7100-09-100CF-01E	Hopper front
