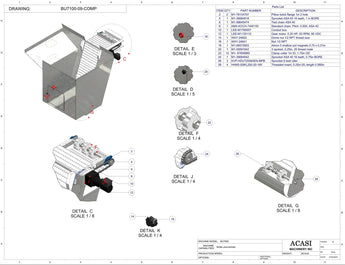

Automatic plastic and metal bottle unscrambler machinewith 48 inches bowl, model BU7100, Assy BU7100-09-COMP, by Acasi Machinery Inc.

Bottle Unscrambler - Model BU7100 | Hopper 25 CF (BU7100-09-COMP)

Item	Part No.	Part Name
2	PEER-UCFT205-16	Pillow bolck flange 1in 2 hole
4	M1-36684918	Sprocket ASA 40 16 teeth, 1 in BORE
6	M1-58645474	Tied chain ASA 40
8	AMA-KOCH-7440100	Standard chain, Pitch: 0.500, ASA 40
10	LEE-M1760007	Conduit box
12	LEE-M1135110	Gear motor, 0.25 HP, 63 RPM, 90 VDC
14	WAY-24602	Dome nut 1/2 NPT thread size
16	WAY-24641	Nut 1/2 NPT

Item	Part No.	Part Name
18	M1-06572903	Alnico 5 shallow pot magnets 0,75 x 0,31in
20	M1-00591842	3 spoked, 0.25in, 20 thread male
22	M1- 87856860	Clamp collar 1in ID, 1.75in OD
24	M1-36684942	Sprocket ASA 40 16 teeth, 0.75in BORE
26	KVP-HDU72008AEN-MPB	Sprocket 8 teeh idler
28	HANS-SSKL250-20-165	Threaded insert, 0.25in-20, length 0.580in

Bottle Unscrambler - Model BU7100 | Hopper 25 CF (BU7100-09-COMP)
