5.0 Oz Piston

$ 1,423.00



PISTON

Sizes availables:

2.5oz | 5oz | 10oz | 20oz | 34oz

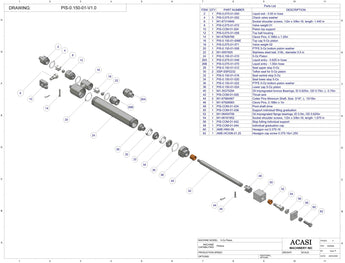

Item Part No. Part name Price
2 PIS-0.075-01-050 Liquid exit - 0.50 in hose
4 PIS-0.075-01-052 Check valve washer
6 M1-67314849 Socket shoulder screws, 1/2in x 3/8in-16, length: 1,445 in
8 PIS-0.075-01-072 Valve weight 01
10 PIS-COM-01-004 Piston top support
12 PIS-0.075-01-058 Top ball housing
14 M1-67926766 Clevis Pins, 0.188in x 1.25in
16 PIS-0.150-01-006E Top cap 5-Oz piston
18 PIS-0.075-01-071 Valve weight 02
20 PIS-0.150-01-008 PTFE 5-Oz bottom piston washer
22 M1-00073825 Stainless steel ball, 316L, diameter 0.5 in
24 PIS-0.150-01-010 5-Oz Piston
26A PIS-0.075-01-048 Liquid entry - 0.625 in hose
26B PIS-0.075-01-070 Liquid entry - 1.00in hose
28 PIS-0.150-01-012 Seal upper stop 5-Oz
30 SSP-SSP2232 Teflon seal for 5-Oz piston
32 PIS-0.150-01-016 Seal central stop 5-Oz
34 PIS-0.150-01-020 Seal lower stop 5-Oz
36 PIS-0.150-01-022 PTFE 5-Oz bottom piston washer
38 PIS-0.150-01-024 Lower cap 5-Oz piston
40 M1-06453849 Oil impregnated bronze Bearings, ID 0.625in, OD 0.75in, L: 0.75in
42 PIS-COM-01-028 Thrust axis
44 M1-67984567 Cotter Pins Minimum Shaft, Size: 3/16", L: 15/16in
46 M1-67926683 Clevis Pins, 0.188in x 1in
48 PIS-COM-01-034 Pivot shaft drive
50 PIS-COM-01-036 Support individual filling graduation
52 M1-06454706 oil impregnated flange bearings, ID 0.5in, OD 0.625in, flange OD 0.875in
54 M1-06181952 Socket shoulder screws, 1/2in x 3/8in-16, length: 1,675 in
56 PIS-COM-01-042 Stop fulling individual support
58 PIS-COM-01-044 Individual graduation cap
60 AME-HNX-06 Hexagon nut 0.375-16
62 AME-HCX06-01.25 Hexagon cap screw 0.375-16x1.250
