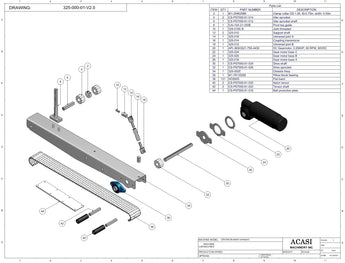

Inline Bottle Cap Tightener Model-TruCap | Inverted Conveyor System (325-000)

Request a Quote

Item	Part No.	Part Name	Price
2	M1-35462589	Clamp collar OD:1.50, ID:0.75in, width: 0.50in
4	CS-PS7000-01-014	Idler sprocket
6	CS-PS7000-01-012	Idler sprocket shaft
8	CAI-10X-21-050E	Pivot top guide
10	325-010E-B	Joint threaded
12	325-010	Support shaft
14	325-016	Universal joint A
16	325-014	Coupling transmision

Item	Part No.	Part Name	Price
18	325-012	Universal joint B
20	APL-BISO021-756-4430	DC Gearmotor, 0.250HP, 60 RPM, 90VDC
22	325-024	Gear motor base C
24	325-020	Gear motor base B
26	325-018	Gear motor base A
30	CS-PS7000-01-024	Drive shaft
32	CS-PS7000-01-026	Drive sprocket

Item	Part No.	Part Name	Price
34	325-002E	Chassis Assy
36	M1-78135282	Pillow block bearing
38	KVP-HDS60500	Flat band
40	CS-PS7000-01-020	Nylon tensor
42	CS-PS7000-01-022	Tensor shaft
44	CS-PS7000-01-016	Belt protective plate
