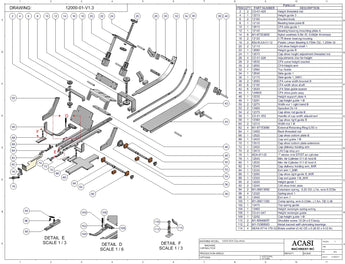

Stainless steel cap chute to feed various sizes of caps, model 12000, Assy 12000-01-V1.3, by Acasi Machinery Inc.

Acasi

Cap Chute Model 12000

Name: Cap Chute Model 12000
Brand: Acasi
Price: 2998.00 USD
Availability: InStock

Price: $ 2,998.00

$ 2,998.00 USD

Product variants

Item	Part No	Part Name
2	CD-01-020	Height threaded rod
4	12210	Height guide 3
6	12160	Knurled knob
8	12130	Bearing base plate B
10	12010	CF4 side guide 1
12	12140	Bearing housing mounting plate A
14	M1-67353805	Nylon washers 0.5in ID, 0.062in thickness
16	12120	0.75 linear bearing housing

Item	Part No.	Part Name
18	IGU-RJUI-01-12	Plastic Linear Bearing 0.750in OD, 1.250in ID
20	12110	CAI shoe height shaft 1
22	12080	Height guide B
24	12070	Cap shoe height adjustment threaded rod
26	CD-01-026	Adjustments disc for height
28	12030	CF4 curve height bracket
30	12050	CF4-Height arm
32	12560	Top Guide

Item	Part No.	Part Name
34	12040	Side guide 1
36	12170	Side guide 1_MIR1
38	12090	CF4 curve width bracket B
40	12100	CF4 width shoe shaft
42	12020	CF4 Side guide spacer
44	12480E	CF4 shoe plate assy
46	12230	Height support plate A
48	12251	Cap height guide 1-B

Item	Part No.	Part Name
50	12270	Width nut 1 right hand B
52	12400	Sprocket 25-14
54	12370	Cap shoe rod guide B
56	CD-01-052	Handle of cap width adjustment
58	12380	Cap shoe right guide B
60	12310	Width nut 1 B
62	M1-67153080	External Retaining Ring 0,50 in
64	12450	Back threaded rod

Item	Part No.	Part Name
66	12520	Cap shoe bottom plate B
68	12430	Cap exit guide 1 B
70	12510	Cap shoe bottom plate extension
72	12420	Cap delivery holding arm
74	12410	CAI Cap stop pin
76	ADA-011-D	1" stroke mini ST/ST air cylinder
78	12540	Mini Air Cylinder 011-D hold B
80	12530	Mini Air Cylinder 011-D hold A

Item	Part No.	Part Name
82	12340	Cap delivery holding arm_MIR
84	12330	Exit arm 1_MIR
86	12290	Cap shoe right guide B_MIR
88	12350	Cap exit guide 1 B_MIR
90	12220	Height guide 1
92	12240	CAI shoe hold plate
94	M1-06813992	Extension spring, 0.25 OD, L1in, wire 0.033in
96	12320	Spring pivot 1
98	12440	Exit arm 1

Item	Part No.	Part Name
100	M1-06811392	Comp spring, wire 0.039in, L1.5in, OD 0.36
102	12470	Top spring guide
104	12460	Height rectangle spring acting
106	CD-01-047	Height rectangle guide
108	12252	Cap height guide 1-B
110	M1-85646057	Shoulder screw 10-24 x 0.5 body
112	M1-75368563	Metal backed self-lubricating bearings
114	SEAS-5714-178-32	Brass washer (0.42 OD x 0.26 ID x 0.03 th)
