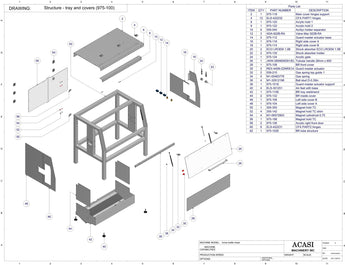

Inline Bottle Cleaner Model BR15 | Structure-Tray And Covers (975-100)



STRUCTURE- TRAY AND COVERS ELECTRIC PANEL TOUCH

TANK RINSER SYSTEM | CLAMPING AND TURNING MECHANISM PROTECTION

 975-100 | 975-100 V3

Item Part No. Part Name Price
2 975-118 Main cover hinges support
4 ELS-422232 CFA PART1 hinges
6 975-120 Acrylic hold 1
8 975-122 Acrylic hold 2
10 559-540 Acrilyc holder separator
12 ADA-922B-RA Valve Mac 922B-RA
14 975-112 Shock absorber nut
16 975-116 Right side cover A
18 975-114 Right side cover B
Item Part No. Part Name Price
20 ECO LROEM 1.0B Shock absorber ECO LROEM 1.0B
22 975-130 Shock absorber holder
24 975-124 Acrylic gate
26 JWW-28W600D91/EL Tubular handle 28mm x 600
28 975-108 BR front cover
30 REX-440N-Z2NRS1A Guard master actuator
32 559-210 Gas spring top guide 1
34 M1-00483776 Gas spring
36 M1-32912198 Ball stud D-0.39in
Item Part No. Part Name Price
38 975-101E Front tube assembly
40 ELS-301251 4in feet with base
42 975-110E BR tray weldmend
44 975-132 BR inside cover
46 975-106 Left side cover B
48 975-104 Left side cover A
50 305-350 Magnet hold TC
52 305-142 Magnet hold TC shim
54 M1-06572903 Magnet cylindrical 0.75
56 975-198 Magnet hold TC
58 975-126 Acrylic right front door
60 ELS-422231 CFA PART2 hinges
62 975-102E BR tube structure
